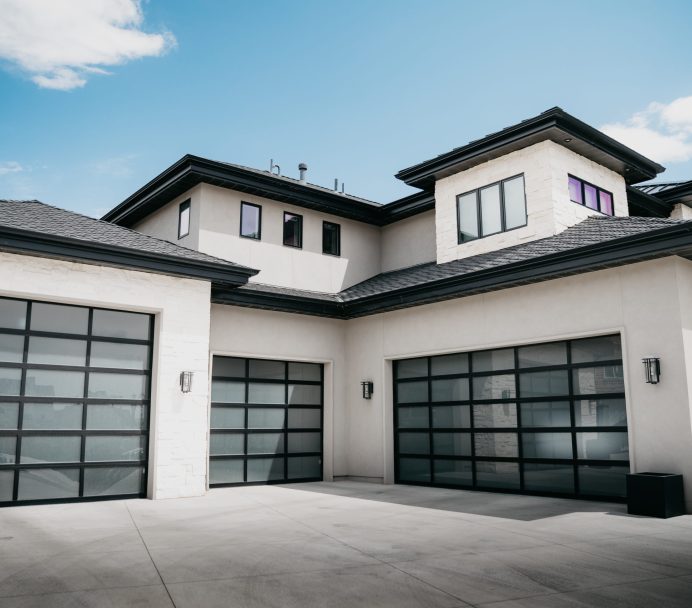

ALUMINUM FULL VIEW

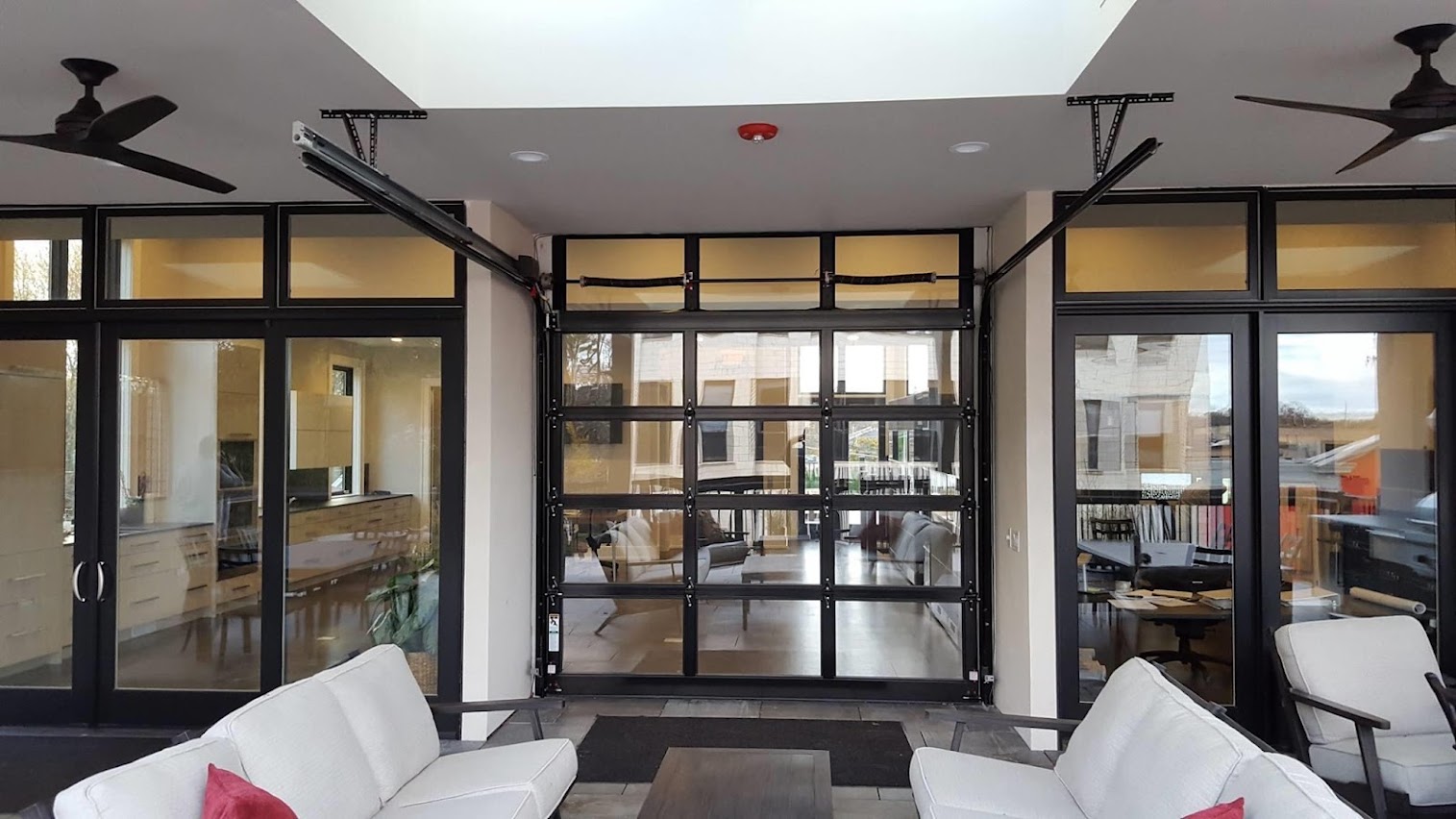

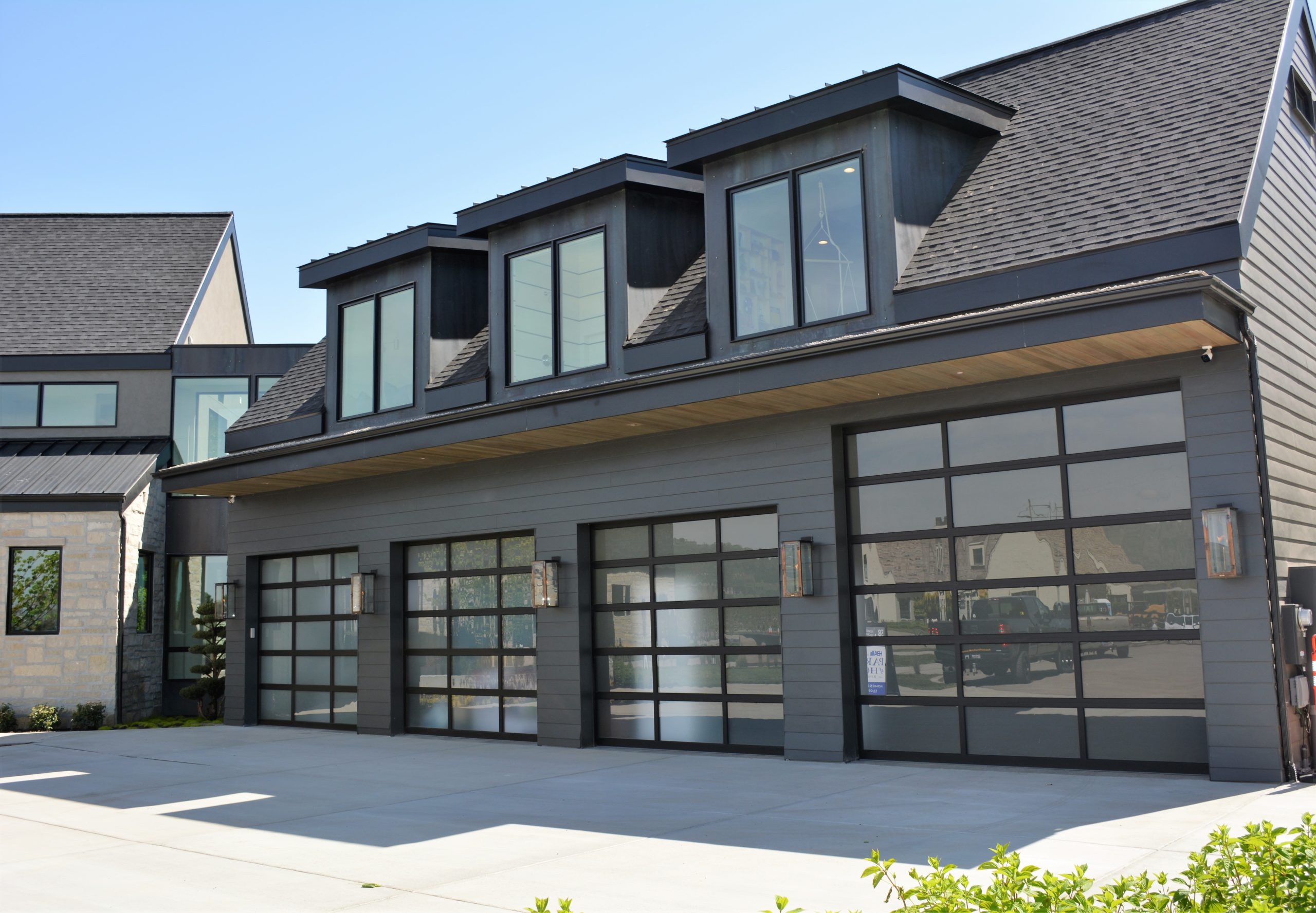

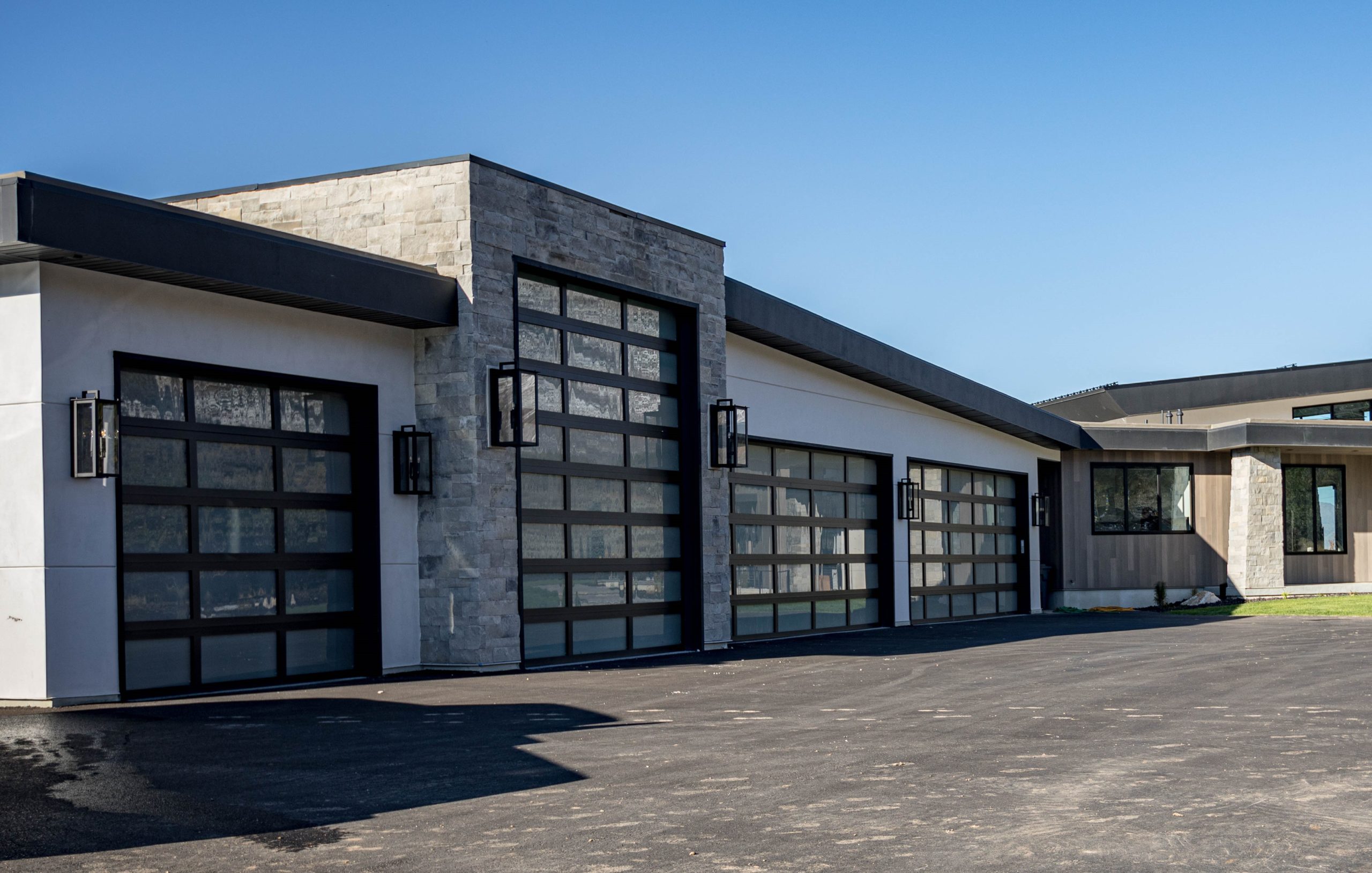

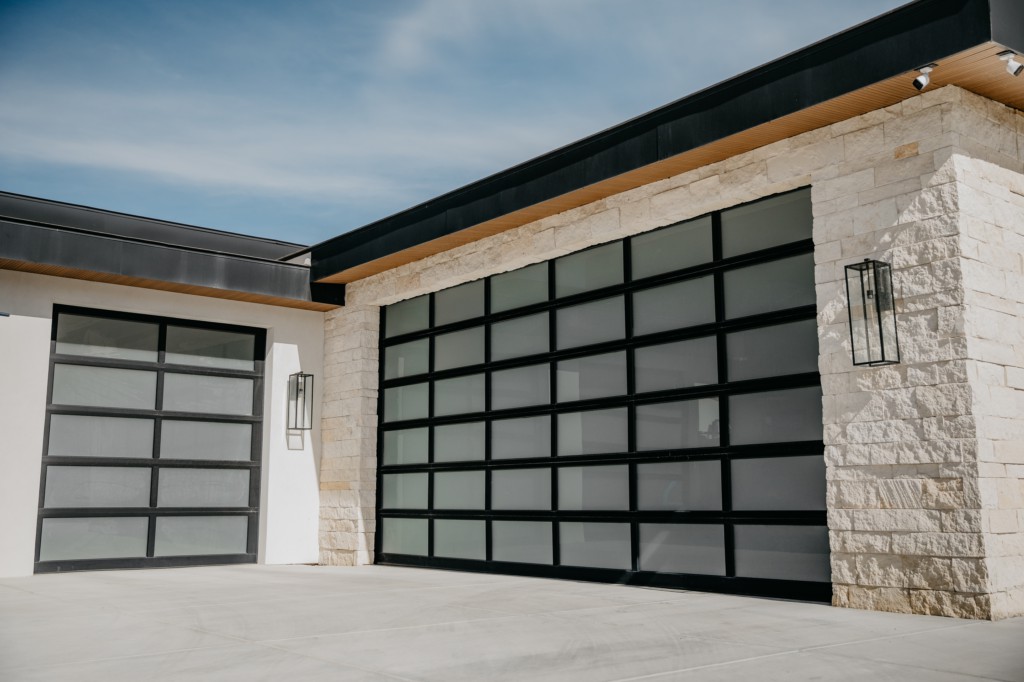

Aluminum/Glass Garage Doors
Sleek,sophisticated aluminum garage doors — a unique look for today’s more contemporary-styled homes. Crisp lines and sleek design formed from durable corrosion-resistant aluminum and light-filtering glass make a striking compliment to your home
- Door Frame
- Material: 1-3/4" thick extruded 6063 -T6 non corrosive commercial-grade

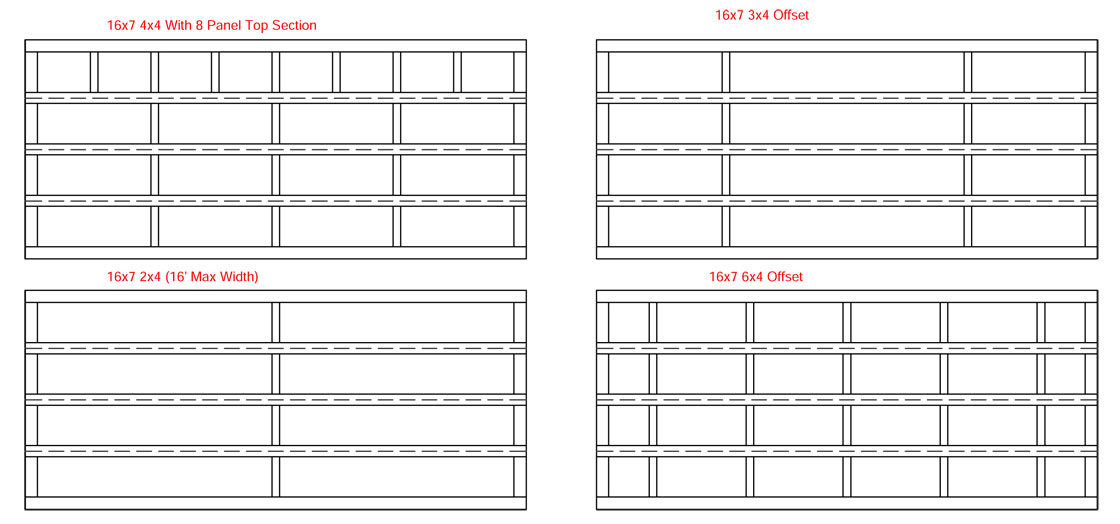

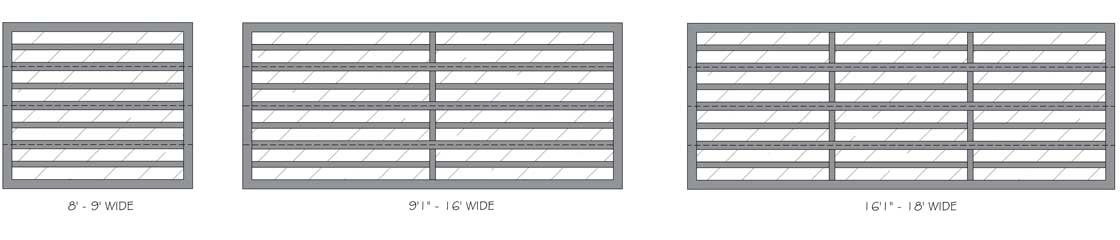

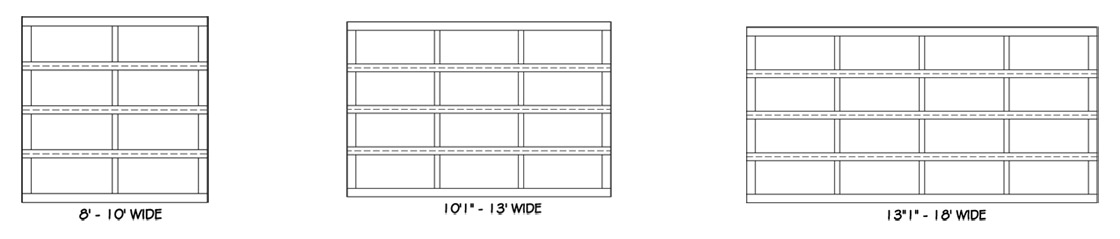

- Sections: Height of section determined by height of door
- Top rail width - 4-5/8"
- Bottom rail width - 4-5/8"
- Combined intermediate rail widths - 4-1/4"
- Center stile width - 2-7/8" End stile width - 4-5/8"
- Section Joints: Standard tounge & groove
- Assembly: Stiles are through bolted to the rails added ridigity and strength
- Maximum door width: 18ft
- Maximum door height: 14ft
